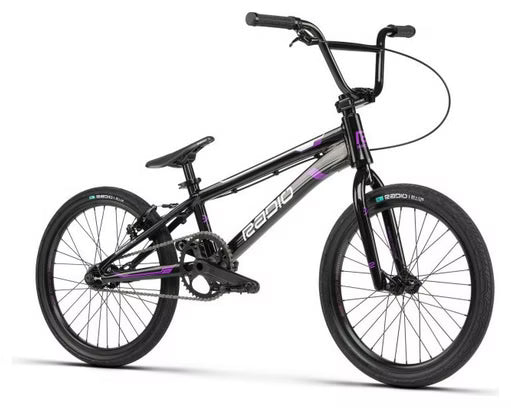

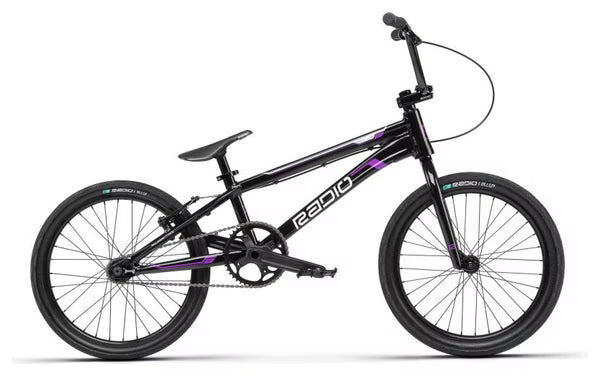

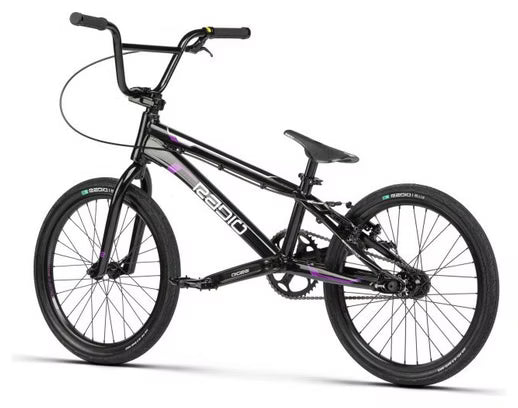

BMX Race Radio Bikes Xenon Pro Noir

Cadre

Aluminium : Hydroformed 6061 T6 alloy, forged & disc brake mount ready dropouts, with int.
chain tensioners

Fourche

Acier : cr-mo, 1-1/8″ butted steerer tube, cr-mo fork legs, 30mm offset

Pignon

Radio, Xenon Pro, 43 dents, alloy

Chaîne

KMC, Z6, 1/2″ x 3/32″

Pédalier

Radio, Xenon Pro, 2pc crank, cold forged/cnc, alloy,175mm length, 24mm spindle

Boîtier de pédalier

Radio, BSA24, external bearing cups, cnc machined, sealed

Leviers de frein

PROMAX “ XL-373” alloy brake rear

Freins

PROMAX “TX-131” alloy brake rear

Roues

Rims : Radio, Argon Pro, 32H, alloy, sleeved joint / Hubs : (F) Radio, Xenon, alloy cnc, fully sealed, 32 dents, 3/8″ cr-mo axle /
(R) : Radio, Xenon, alloy cnc, fully sealed, 32 dents, disc brake cassette, 3/8″ cr-mo axle

Pneus

Radio, Oxygen, front 20″x1.75″ / rear 20″x1.6″

Guidon

6061-T6 alloy, Rise 7.5″, Width 28″, Backsweep 11°, Upsweep 3.5°

Poignées

Radio, Xenon, diamond knurling, clamp on grip, 139mm length

Potence

Radio, Xenon Pro, toploader, ext. 53mm, cold forged/cnc alloy

Jeu de direction

Radio, Pro, Int. Headset, sealed, threadless, 1-1/8″ – 1.5″, including fork crown race 1.5″-1 1/8″ converter

Selle

Radio, Xenon, pivotal, no padding

Tige de selle

Radio, 27.2mm, pivotal, alloy seatpost

Pédales

Radio, Xenon Slim, alloy

Poids Total

---

Coloris

Black

Taille des roues (pouces)

20"

Tube de selle

---

Tube supérieur

20.75"

Longueur base

14.25"

Angle de direction (°)

74

Angle tube de selle (°)

71

Empattement

---

Hauteur boîtier de pédalier

11.6"
